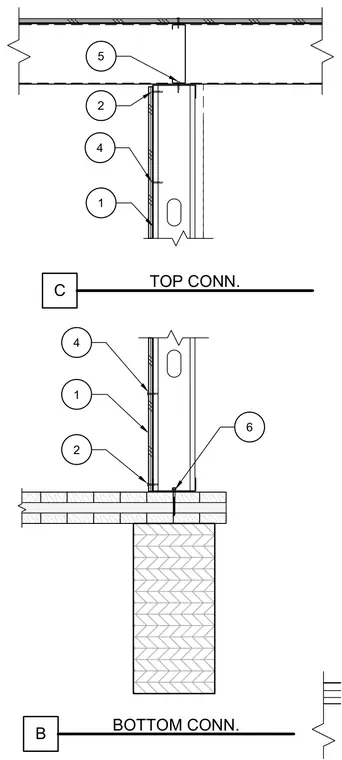

Cold-formed steel stud framing connects at the top and bottom with designated track profiles and fastening configurations. The top connection secures a stud to an overhead track using mechanical fasteners. The bottom connection anchors a stud track to a concrete or masonry base with fasteners.
B BOTTOM CONN. 6 1 2 4 C TOP CONN. 1 2 4 5
