Structural · S-2FTXA

Typical Concrete Column Footing

Materials

Concrete Steel Glass / Glazing

Elements

Columns Floors / Slabs Foundations / Footings

Connections

Rebar Splice / Development

About this detail

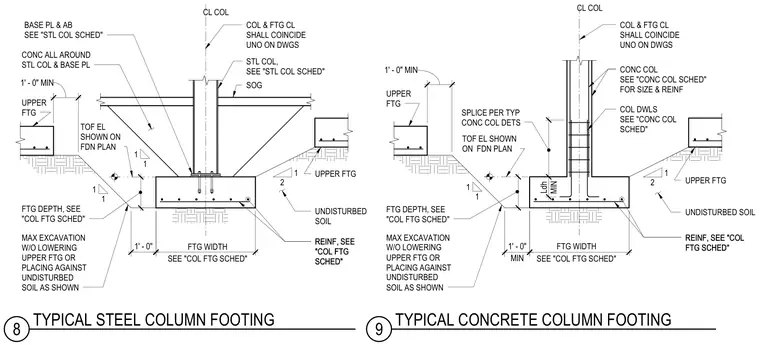

These structural details show typical foundation footings for both steel and concrete columns bearing on undisturbed soil. The assembly features a reinforced concrete footing supporting either a steel column with a base plate and anchor bolts or a reinforced concrete column with dowels tied to the footing reinforcement. A slab on grade intersects the upper portion of the footing assembly, maintaining specified minimum clearances and soil excavation slope ratios. Column and footing centerlines coincide unless otherwise noted on drawings, with footing depth, width, and reinforcing sizes scheduled separately.
