Structural · S-2FQDD

Floor Slab Opening and Gage Closure Detail at Steel Beam

Materials

Concrete Metal (misc.)

Elements

Beams Floors / Slabs Decks Roof / Floor Openings

Connections

Welded Connection Shear Stud / Composite

About this detail

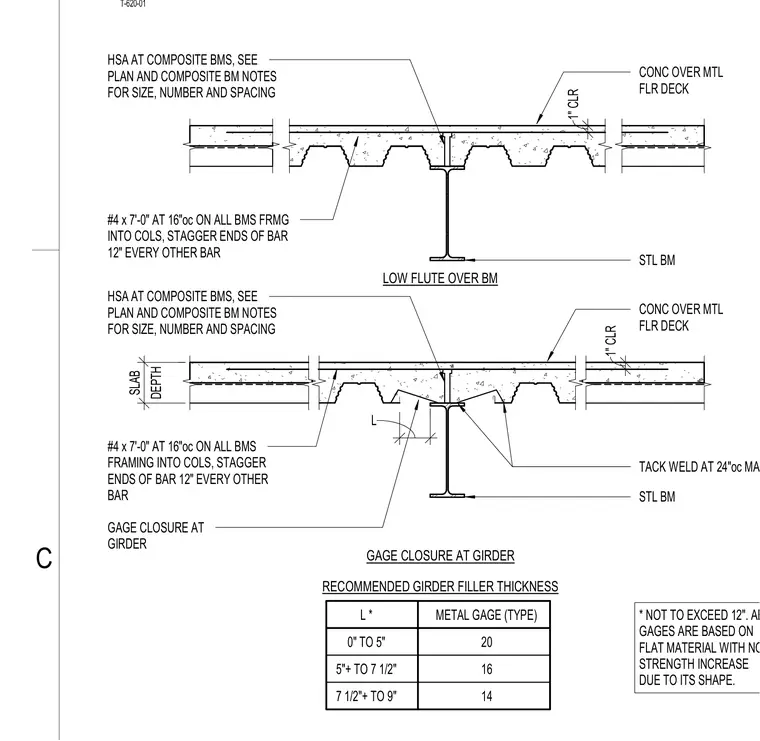

Concrete over metal floor deck is supported by a structural steel beam with a low flute over the beam. Shear anchors are placed at composite beams with size, number, and spacing specified per the plan and composite beam notes. Reinforcing bars measuring number 4 by seven feet zero inches are placed at sixteen inches on center on all beams framing into columns, with ends of the bar staggered twelve inches every other bar. A gage closure at the girder is detailed with recommended girder filler thicknesses corresponding to specific metal gage types.
