A wide-flange beam connects to a W14 column utilizing a rigid moment connection detail with demand-critical complete-joint-penetration welds at both flanges and the beam web. Full-depth stiffener plates are provided on each side of the column, with thickness matching the beam flange and extending from the column web to the outside of the beam flange with milled ends to bear. Erection bolts and a three-eighths-inch minimum backing or erection tab plate assist with temporary alignment during construction. Five-sixteenths-inch fillet welds are specified at standard junctions, alongside a buckling-restrained braced gusset plate where applicable and a drag strut referenced to plan.

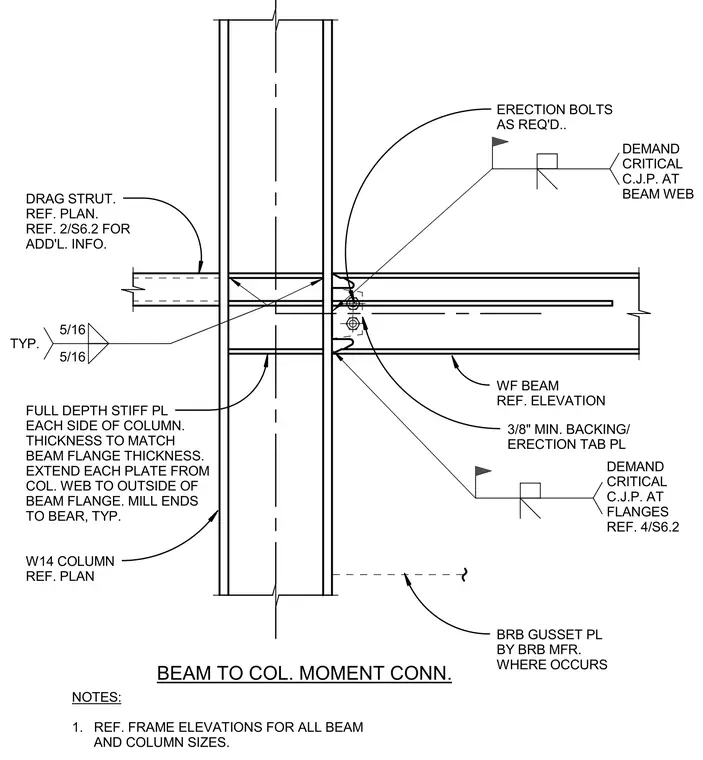

WF BEAM REF. ELEVATION NOTES: 1. REF. FRAME ELEVATIONS FOR ALL BEAM AND COLUMN SIZES. W14 COLUMN REF. PLAN DEMAND CRITICAL C.J.P. AT BEAM WEB DEMAND CRITICAL C.J.P. AT FLANGES REF. 4/S6.2 5/16 5/16 TYP. 3/8" MIN. BACKING/ ERECTION TAB PL BRB GUSSET PL BY BRB MFR. WHERE OCCURS FULL DEPTH STIFF PL EACH SIDE OF COLUMN. THICKNESS TO MATCH BEAM FLANGE THICKNESS. EXTEND EACH PLATE FROM COL. WEB TO OUTSIDE OF BEAM FLANGE. MILL ENDS TO BEAR, TYP. BEAM TO COL. MOMENT CONN. ERECTION BOLTS AS REQ'D.. DRAG STRUT. REF. PLAN. REF. 2/S6.2 FOR ADD'L. INFO.
