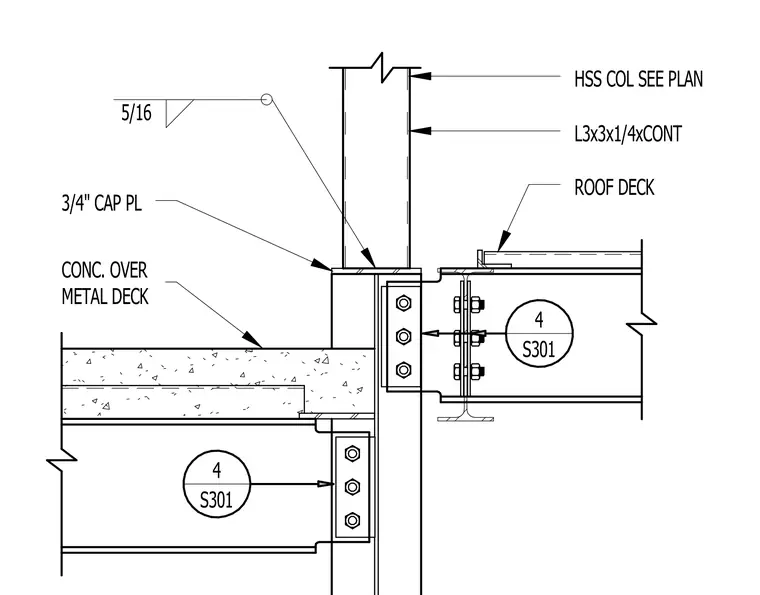

A hollow structural section column sized per plan connects with a three-quarter-inch cap plate welded with a five-sixteenth-inch fillet weld. Continuous 3x3x1/4 angle supports the roof deck above concrete over metal deck construction. Framing beams attach to the column web and flange with bolted clip angles referenced to detail 4 on sheet S301.
3/4" CAP PL HSS COL SEE PLAN 4 S301 4 S301 L3x3x1/4xCONT ROOF DECK CONC. OVER METAL DECK 5/16
