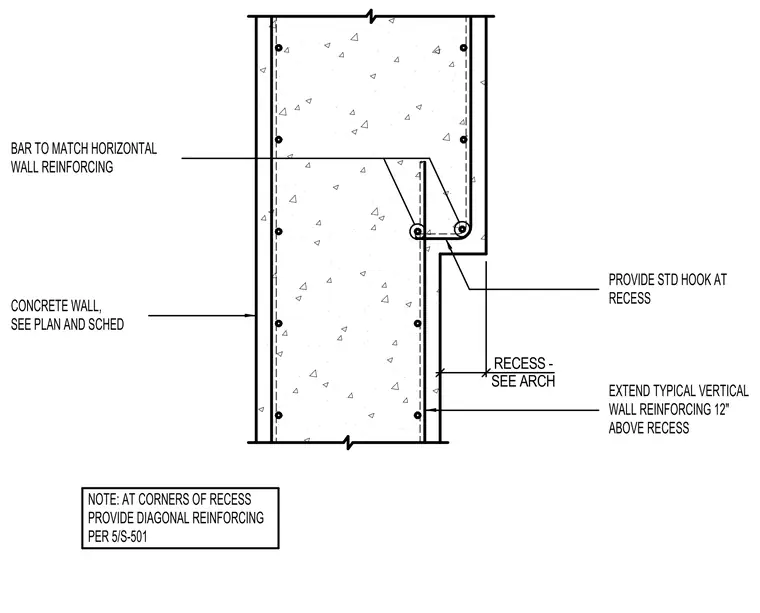

An architectural recess formed into a reinforced concrete wall has reinforcing sizing and placement coordinated per architectural drawings and structural schedules. A matching horizontal reinforcing bar and standard hooks are provided at the recess, with diagonal reinforcing installed at the recess corners per detail 5/S-501. Typical vertical wall reinforcing extends twelve inches above the recess to maintain structural continuity.
RECESS - SEE ARCH BAR TO MATCH HORIZONTAL WALL REINFORCING CONCRETE WALL, SEE PLAN AND SCHED NOTE: AT CORNERS OF RECESS PROVIDE DIAGONAL REINFORCING PER 5/S-501 PROVIDE STD HOOK AT RECESS EXTEND TYPICAL VERTICAL WALL REINFORCING 12" ABOVE RECESS
