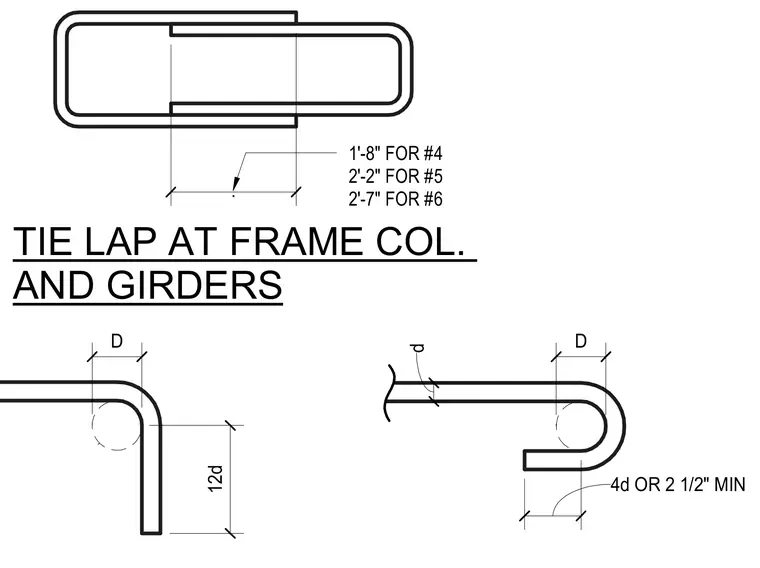

Reinforcing ties feature lap lengths of one foot eight inches for number four bars, two feet two inches for number five bars, and two feet seven inches for number six bars. Standard hook details include extensions of twelve bar diameters for bends and four bar diameters or two and a half inches minimum for anchored ends.
TIE LAP AT FRAME COL. AND GIRDERS 1'-8" FOR #4 2'-2" FOR #5 2'-7" FOR #6 d . 4d OR 2 1/2" MIN 12d D D
