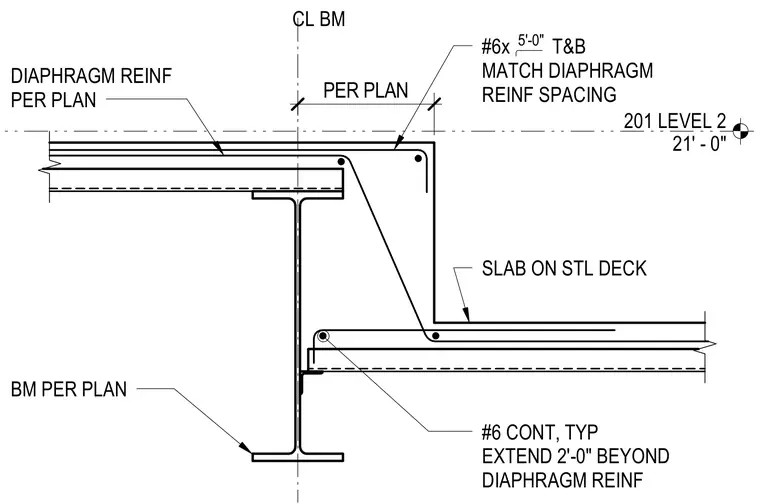

A concrete slab on steel deck bears on a steel beam per plan, featuring a vertical step or drop in the slab elevation. Continuous number 6 reinforcing bars run typically through the assembly and extend two feet beyond the diaphragm reinforcement. Additional number 6 bars spaced at five feet on center match the diaphragm reinforcement spacing at the top and bottom. Diaphragm reinforcement is provided per plan across the steel deck assembly.
201 LEVEL 2 21' - 0" #6 CONT, TYP EXTEND 2'-0" BEYOND DIAPHRAGM REINF #6x T&B MATCH DIAPHRAGM REINF SPACING 5'-0" DIAPHRAGM REINF PER PLAN SLAB ON STL DECK BM PER PLAN CL BM PER PLAN
