Structural · S-2F9YT

Deck Reinforcing at Small Openings

Materials

Elements

Beams Decks Reinforcing Roof / Floor Openings

About this detail

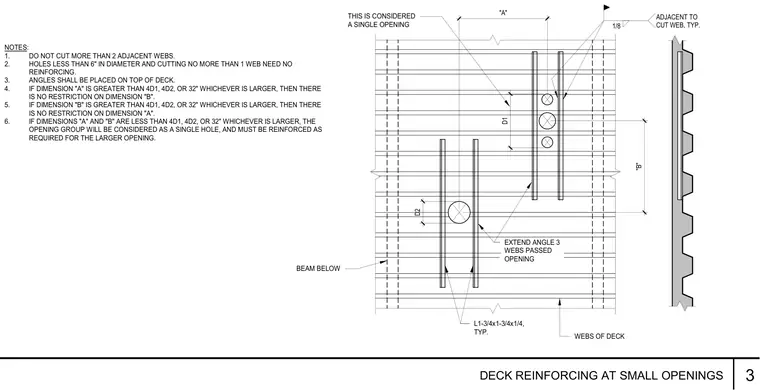

This structural framing detail shows the reinforcing configuration for small penetrations and openings in metal floor or roof decks. Steel angle members measuring 1-3/4 by 1-3/4 by 1/4 inches are placed on top of the deck adjacent to cut webs and extended three webs past the opening. Dimensioned spacing rules govern single versus grouped openings and determine when reinforcing angles are required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
