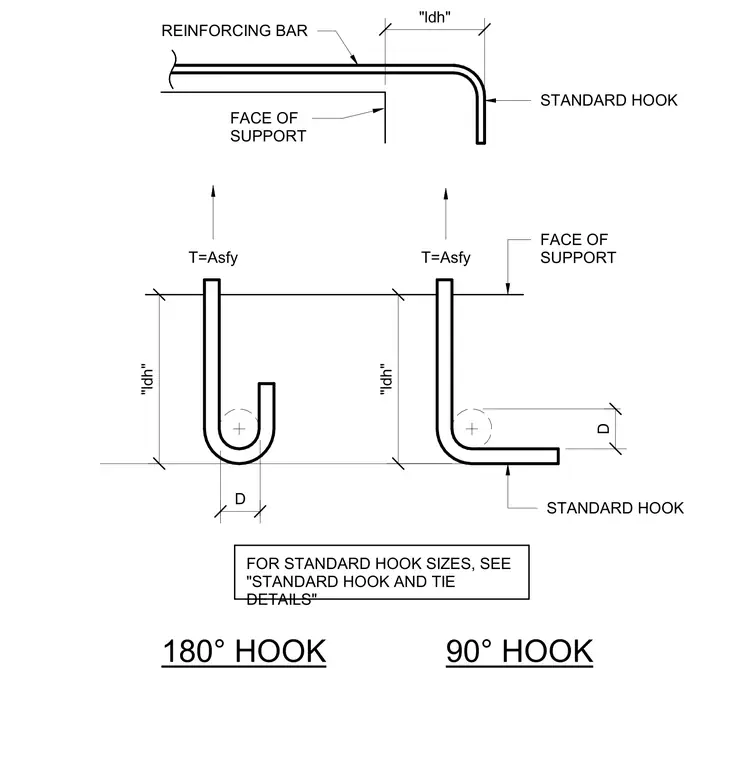

Reinforcing bars terminate with standard hooks at the face of support with defined embedment lengths denoted as ldh. The diagram details 90-degree and 180-degree hook geometries, including bar diameter D and tension force T equals Asfy. Standard hook sizes are referenced to standard hook and tie details.
REINFORCING BAR T=Asfy FACE OF SUPPORT FACE OF SUPPORT STANDARD HOOK 90° HOOK 180° HOOK T=Asfy D D "ldh" FOR STANDARD HOOK SIZES, SEE "STANDARD HOOK AND TIE DETAILS" "ldh" "ldh" STANDARD HOOK
