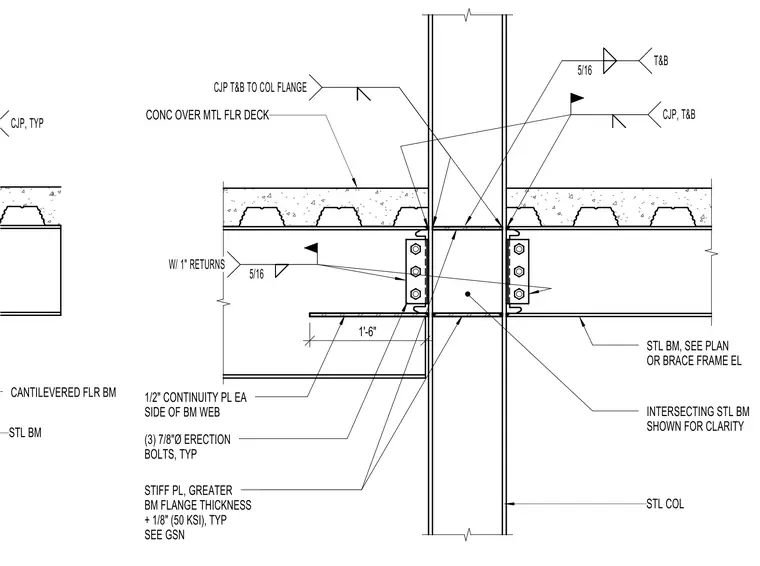

Steel floor beams of differing depths frame into a steel column with complete joint penetration welds at the top and bottom flanges. One-half-inch continuity plates are installed on each side of the beam web, featuring stiffener plates greater than the beam flange thickness plus one-eighth inch with a yield strength of fifty kilopounds per square inch. Three seven-eighth-inch diameter erection bolts connect the beam web with five-sixteenth-inch fillet welds and one-inch returns. Concrete over metal floor deck spans across the assembly. An intersecting steel beam is shown for clarity.
CANTILEVERED FLR BM STL BM CJP, TYP STL BM, SEE PLAN OR BRACE FRAME EL STIFF PL, GREATER BM FLANGE THICKNESS + 1/8" (50 KSI), TYP SEE GSN STL COL CONC OVER MTL FLR DECK (3) 7/8"Ø ERECTION BOLTS, TYP 5/16 W/ 1" RETURNS 5/16 T&B CJP, T&B CJP T&B TO COL FLANGE 1'-6" INTERSECTING STL BM SHOWN FOR CLARITY 1/2" CONTINUITY PL EA SIDE OF BM WEB
