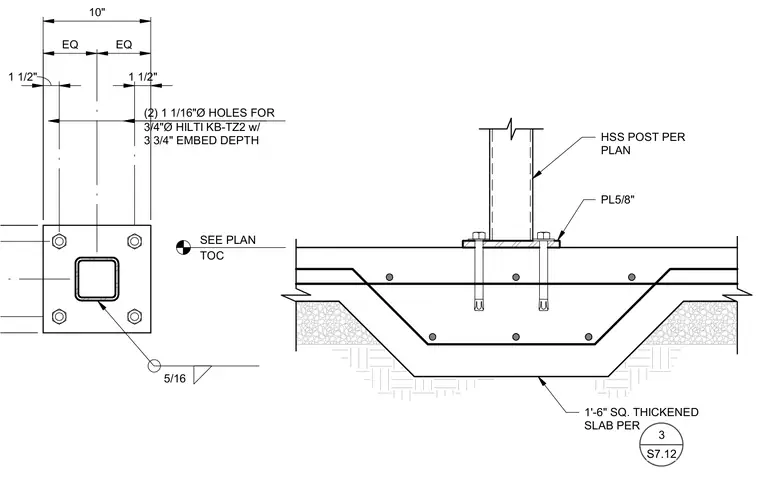

An HSS stair landing post is welded to a square steel base plate using a five-sixteenths inch fillet weld. The base plate is secured to a one-foot six-inch square thickened concrete slab using four three-quarters inch diameter Hilti KB-TZ2 wedge anchors with a three and three-quarters inch embedment depth. The anchor layout features ten-inch spacing with equal distribution across the plate.
10" EQ EQ 1 1/2" 1 1/2" (2) 1 1/16"Ø HOLES FOR 3/4"Ø HILTI KB-TZ2 w/ 3 3/4" EMBED DEPTH PL5/8" HSS POST PER PLAN TOC SEE PLAN 1'-6" SQ. THICKENED SLAB PER 5/16 3 S7.12
