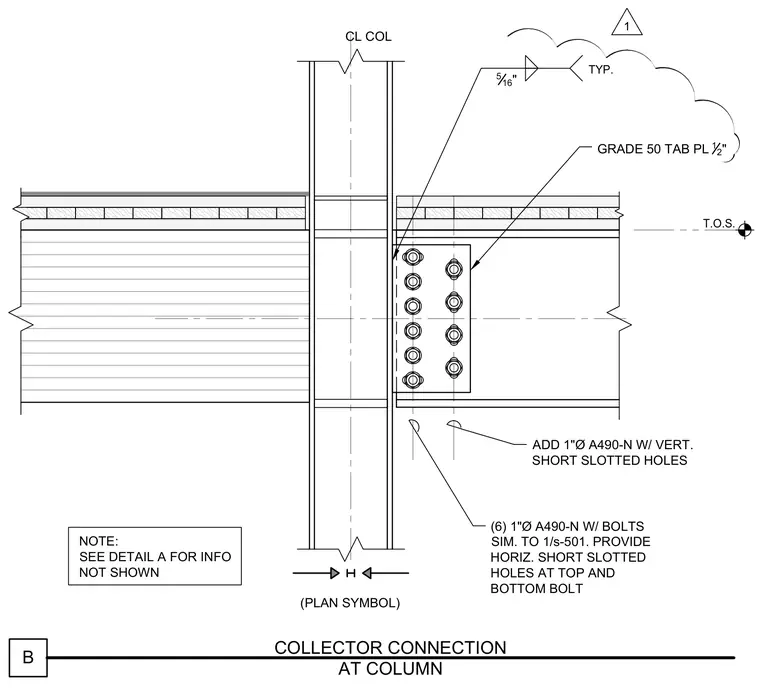

A structural steel collector beam connects to a column centerline using a one-half-inch Grade 50 tab plate welded with a five-sixteenth-inch fillet weld typically. The connection utilizes six one-inch-diameter A490-N bolts with vertical short slotted holes, and additional one-inch-diameter A490-N bolts with horizontal short slotted holes provided at the top and bottom bolt locations. Additional information is referenced in Detail A.
B COLLECTOR CONNECTION AT COLUMN (PLAN SYMBOL) CL COL NOTE: SEE DETAIL A FOR INFO NOT SHOWN GRADE 50 TAB PL 1 2 " TYP. 516 " T.O.S. ADD 1"Ø A490-N W/ VERT. SHORT SLOTTED HOLES (6) 1"Ø A490-N W/ BOLTS SIM. TO 1/s-501. PROVIDE HORIZ. SHORT SLOTTED HOLES AT TOP AND BOTTOM BOLT 1
