Floor-to-Floor Wood Framing Strap Connection

Materials

Elements

Beams Walls Floors / Slabs Connections / Plates

About this detail

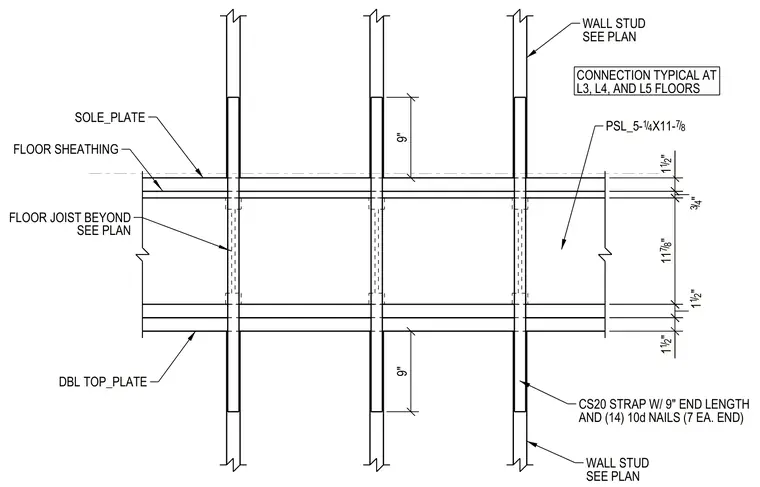

A vertical wall-to-floor strapping connection is used at levels L3, L4, and L5. A CS20 strap with a nine-inch end length ties the wall studs across the floor assembly using fourteen ten-penny nails with seven nails at each end. The assembly incorporates double top plates, floor sheathing, a sole plate, and a parallel strand lumber member measuring five and a quarter by eleven and seven-eighths inches. Floor joists are positioned beyond as specified per plan.
