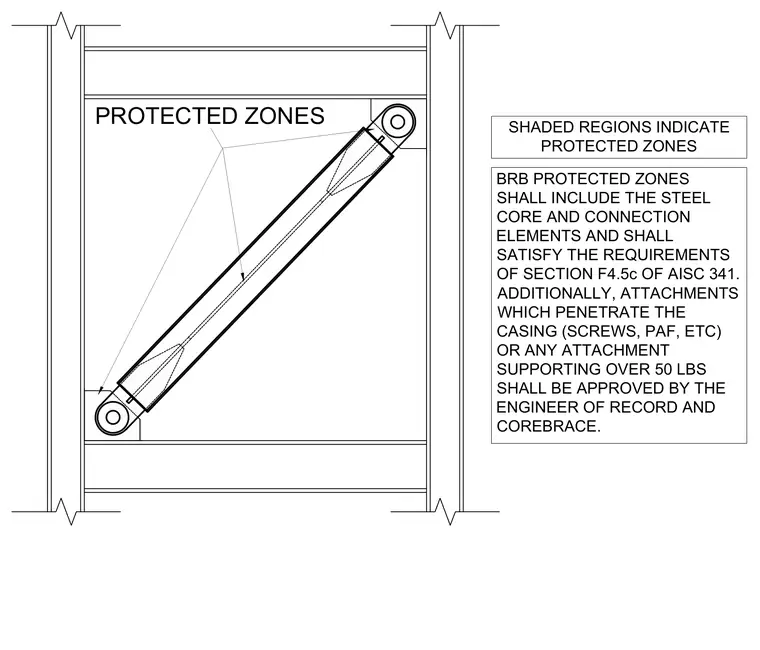

Buckling-restrained braced frame elevations detailing protected zones in accordance with AISC 341 Section F4.5c. Shaded regions encompass the steel core and connection elements. Attachments penetrating the casing or supporting over 50 pounds require approval from the engineer of record and the manufacturer.
SHADED REGIONS INDICATE PROTECTED ZONES BRB PROTECTED ZONES SHALL INCLUDE THE STEEL CORE AND CONNECTION ELEMENTS AND SHALL SATISFY THE REQUIREMENTS OF SECTION F4.5c OF AISC 341. ADDITIONALLY, ATTACHMENTS WHICH PENETRATE THE CASING (SCREWS, PAF, ETC) OR ANY ATTACHMENT SUPPORTING OVER 50 LBS SHALL BE APPROVED BY THE ENGINEER OF RECORD AND COREBRACE. PROTECTED ZONES
