Structural · S-2EXZD

Cold-Formed Steel Infilled Shear Wall and Roof Edge Detail

Materials

Steel Cold-formed Steel

Elements

Beams Walls Shear Walls Roofs Decks

Connections

HSS Connection

About this detail

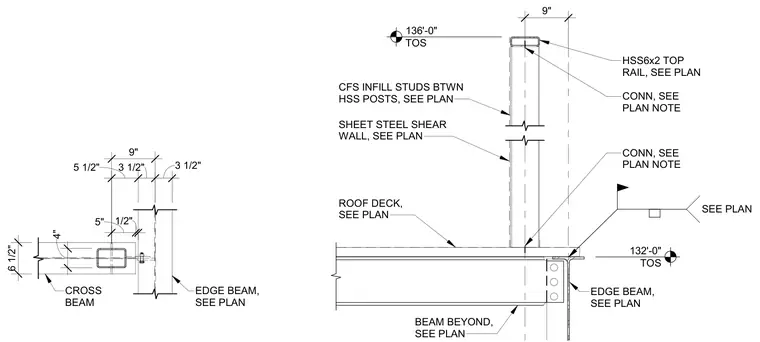

Cold-formed steel infill studs run between hollow structural section posts and tie into a sheet steel shear wall above the roof deck level. The assembly bears on a structural steel edge beam detailed per plan, with connections and spacing dimensioned to support the cross beam and top rail. An HSS6x2 top rail caps the infill framing at elevation 136'-0" TOS, while the roof deck intersects the edge beam at elevation 132'-0" TOS.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
