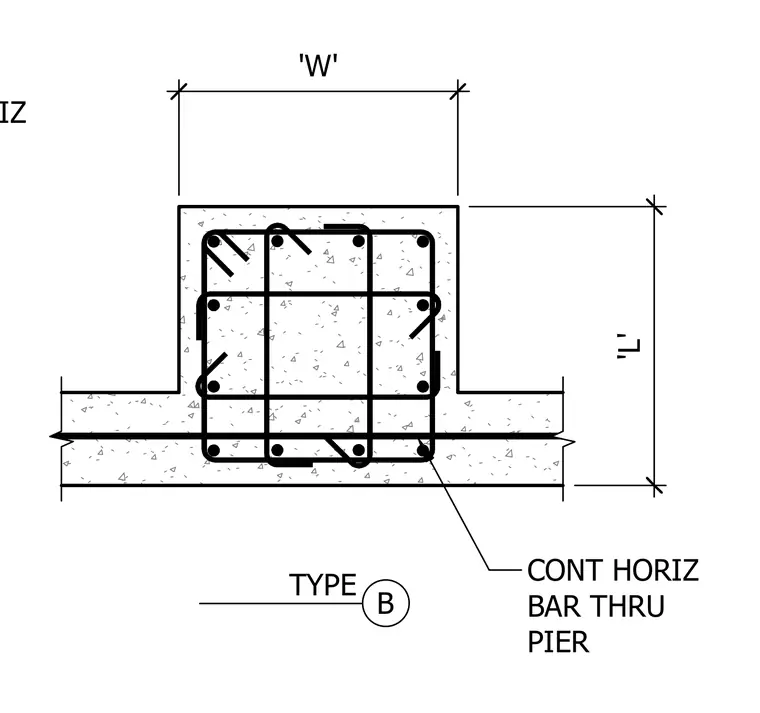

Continuous horizontal reinforcing bars pass through the concrete pier as designated by type B. The pier features a reinforced concrete profile with vertical bars, tie stirrups, and dimensioned width W and length L. Horizontal bars continue through the intersecting concrete footing or wall section.
