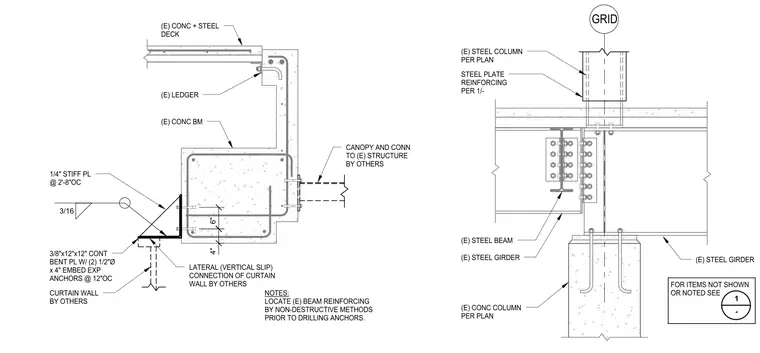

An existing concrete beam and ledger support a concrete and steel deck above, with a continuous bent plate measuring three-eighths by twelve by twelve inches anchored to the concrete using two half-inch diameter by four-inch expansion anchors at twelve inches on center. One-quarter-inch stiffener plates are spaced at two feet eight inches on center and welded with three-sixteenth-inch fillet welds. A lateral vertical slip connection for a curtain wall and a separate canopy connection are provided by others. Existing steel columns, girders, and beams are reinforced with steel plates per plan, requiring non-destructive location of existing beam reinforcing prior to drilling anchors.
(E) STEEL GIRDER (E) STEEL BEAM (E) CONC COLUMN PER PLAN 1 - FOR ITEMS NOT SHOWN OR NOTED SEE (E) STEEL COLUMN PER PLAN STEEL PLATE REINFORCING PER 1/- (E) STEEL GIRDER GRID (E) CONC + STEEL DECK 4" 6" 1/4" STIFF PL @ 2'-8"OC 3/8"x12"x12" CONT BENT PL W/ (2) 1/2"Ø x 4" EMBED EXP ANCHORS @ 12"OC 3/16 LATERAL (VERTICAL SLIP) CONNECTION OF CURTAIN WALL BY OTHERS CURTAIN WALL BY OTHERS NOTES: LOCATE (E) BEAM REINFORCING BY NON-DESTRUCTIVE METHODS PRIOR TO DRILLING ANCHORS. CANOPY AND CONN TO (E) STRUCTURE BY OTHERS (E) CONC BM (E) LEDGER
