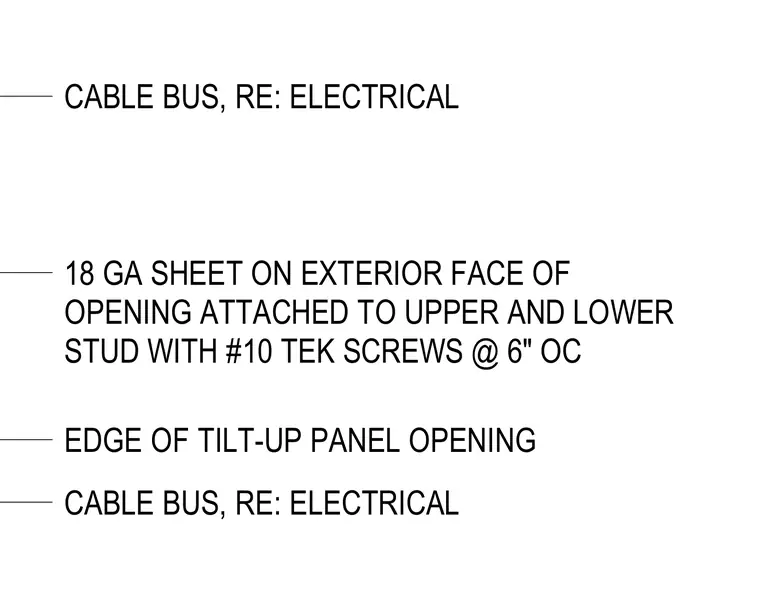

An eighteen gauge sheet metal closure is installed on the exterior face of the opening. It is secured to the upper and lower studs using number ten TEK screws spaced at six inches on center. The assembly interfaces with the edge of the tilt-up concrete panel opening near electrical cable bus routing.
CABLE BUS, RE: ELECTRICAL CABLE BUS, RE: ELECTRICAL 18 GA SHEET ON EXTERIOR FACE OF OPENING ATTACHED TO UPPER AND LOWER STUD WITH #10 TEK SCREWS @ 6" OC EDGE OF TILT-UP PANEL OPENING
