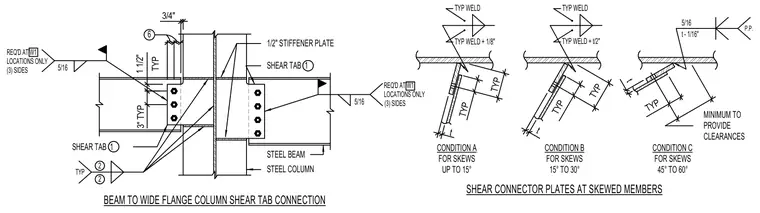

A shear tab connection joins a steel beam to a wide flange steel column for skewed framing conditions. The assembly incorporates a one-half-inch stiffener plate welded to the column web, connecting to a shear tab welded along three sides with five-sixteenth-inch fillets as required at specific locations. Three distinct skew angle conditions are detailed: Condition A for skews up to fifteen degrees with standard weld sizes, Condition B for skews from fifteen to thirty degrees, and Condition C for skews from forty-five to sixty degrees maintaining minimum clearances and plate offsets. Typical bolt groups secure the steel beam web to the single plate shear connection.
5/16 REQ'D AT W1 LOCATIONS ONLY (3) SIDES 5/16 REQ'D AT W1 LOCATIONS ONLY (3) SIDES 6 TYP 1 1/2" 3" TYP TYP t MINIMUM TO PROVIDE CLEARANCES TYP TYP t TYP TYP t 3/4" 1/2" STIFFENER PLATE STEEL COLUMN STEEL BEAM SHEAR TAB 1 SHEAR TAB 1 2 2 TYP BEAM TO WIDE FLANGE COLUMN SHEAR TAB CONNECTION 45° TO 60° FOR SKEWS CONDITION C 15° TO 30° FOR SKEWS CONDITION B UP TO 15° FOR SKEWS CONDITION A SHEAR CONNECTOR PLATES AT SKEWED MEMBERS t - 1/16" TYP WELD TYP WELD + 1/8" TYP WELD TYP WELD + t/2" 5/16 P.P.
