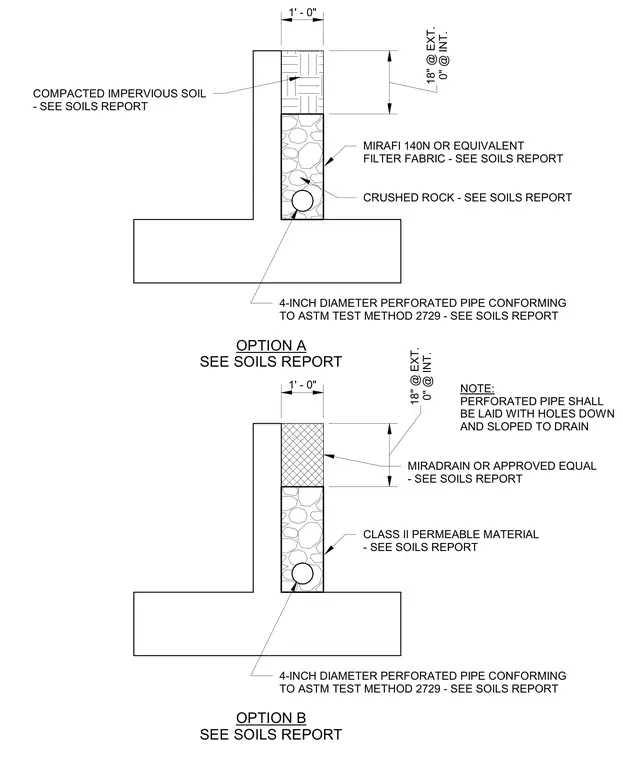

Drainage options for a concrete retaining wall foundation include two variations for backfill and drainage media. Option A incorporates a four-inch diameter perforated pipe conforming to ASTM test method 2729 laid in crushed rock wrapped in Mirafi 140N or equivalent filter fabric, topped with compacted impervious soil. Option B utilizes a four-inch diameter perforated pipe in Class II permeable material wrapped in Miradrain or an approved equal. Both options require the perforated pipe to be laid with holes down and sloped to drain, with backfill dimensions of one foot zero inches width and depths varying eighteen inches at the exterior and zero inches at the interior.
1' - 0" 0" @ INT. 18" @ EXT. CRUSHED ROCK - SEE SOILS REPORT MIRAFI 140N OR EQUIVALENT FILTER FABRIC - SEE SOILS REPORT COMPACTED IMPERVIOUS SOIL - SEE SOILS REPORT 4-INCH DIAMETER PERFORATED PIPE CONFORMING TO ASTM TEST METHOD 2729 - SEE SOILS REPORT NOTE: PERFORATED PIPE SHALL BE LAID WITH HOLES DOWN AND SLOPED TO DRAIN 1' - 0" 0" @ INT. 18" @ EXT. CLASS II PERMEABLE MATERIAL - SEE SOILS REPORT MIRADRAIN OR APPROVED EQUAL - SEE SOILS REPORT 4-INCH DIAMETER PERFORATED PIPE CONFORMING TO ASTM TEST METHOD 2729 - SEE SOILS REPORT OPTION A SEE SOILS REPORT OPTION B SEE SOILS REPORT
