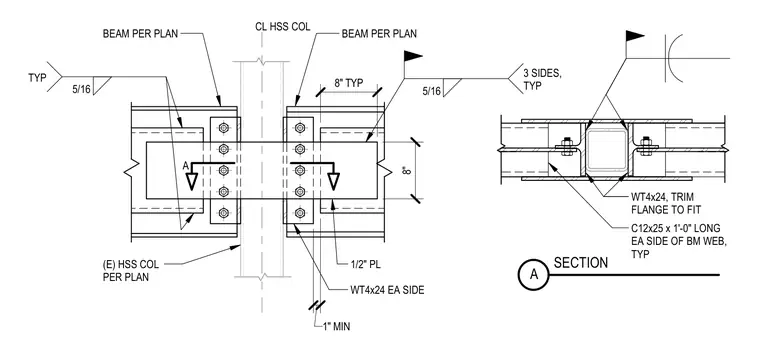

Beams frame into opposite sides of a hollow structural section column using WT4x24 shapes placed on each side. A one-half-inch plate connects to the beam web with a bolted configuration. Channel sections designated as C12x25, one foot long, are placed on each side of the beam web with trimmed flanges to fit the geometry. Five-sixteenth-inch fillet welds secure the connection components on three sides typically.
BEAM PER PLAN CL HSS COL (E) HSS COL PER PLAN SECTION A BEAM PER PLAN WT4x24 EA SIDE A 1/2" PL 8" WT4x24, TRIM FLANGE TO FIT C12x25 x 1'-0" LONG EA SIDE OF BM WEB, TYP 8" TYP 1" MIN 5/16 TYP 5/16 3 SIDES, TYP
