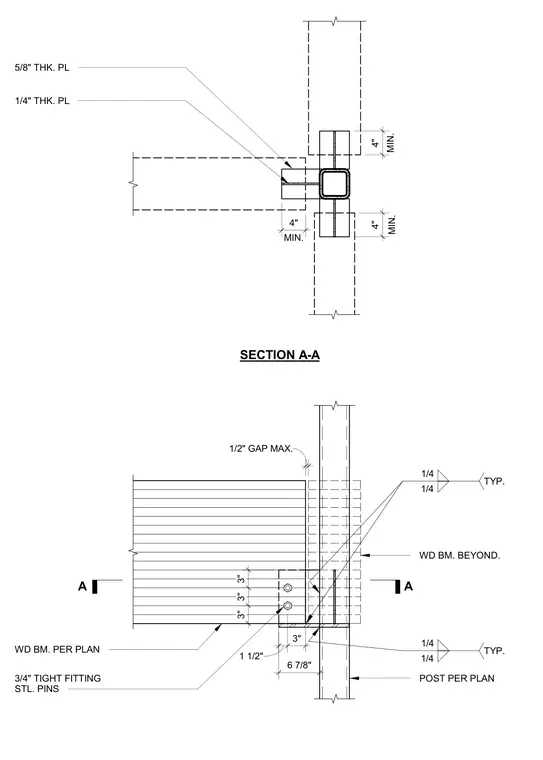

A glued laminated timber beam connects to a hollow structural section post per plan, utilizing three-quarter-inch tight-fitting steel pins. The connection incorporates a five-eighth-inch thick plate and a one-quarter-inch thick plate welded to the post with typical quarter-inch fillet welds. A maximum one-half-inch gap is maintained between the timber beam end and the post face. The timber beam extends beyond with a three-inch vertical spacing for the pins, positioned one and a half inches from the beam edge.
1/2" GAP MAX. 6 7/8" 1 1/2" 3" 3" 3" 3" TYP. 1/4 1/4 TYP. 1/4 1/4 A A SECTION A-A MIN. 4" MIN. 4" MIN. 4" 1/4" THK. PL 5/8" THK. PL WD BM. BEYOND. POST PER PLAN 3/4" TIGHT FITTING STL. PINS WD BM. PER PLAN
