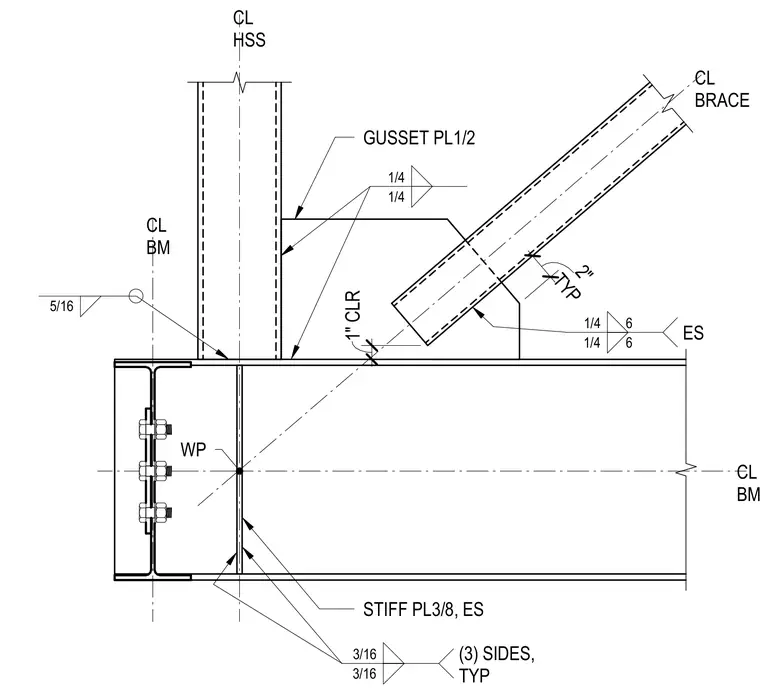

An HSS column intersects a steel beam with a one-half-inch gusset plate welded to both members to transfer bracing loads. A diagonal HSS brace frames into the gusset plate maintaining a one-inch clearance from the beam flange. A three-eighths-inch stiffener plate is welded inside the beam web with three-sixteenths fillet welds on three sides. The gusset plate is attached to the members with quarter-inch fillet welds on each side. A five-sixteenths fillet weld connects the column base or framing elements at the beam intersection.
CL BM WP CL HSS CL BRACE CL BM 1" CLR STIFF PL3/8, ES 1/4 1/4 ES 6 6 1/4 1/4 (3) SIDES, TYP 3/16 3/16 TYP 2" GUSSET PL1/2 5/16
