A contractor-provided spreader section distributes suspended loads beneath a concrete-filled metal deck. Threaded anchors extend upward through the deck flutes to secure the assembly. Maximum allowable loading is twelve hundred pounds within a four-foot length of flute, spaced at four feet on center minimum. Where loads exceed these specified values, an alternative anchorage arrangement must be submitted to the architect for review.

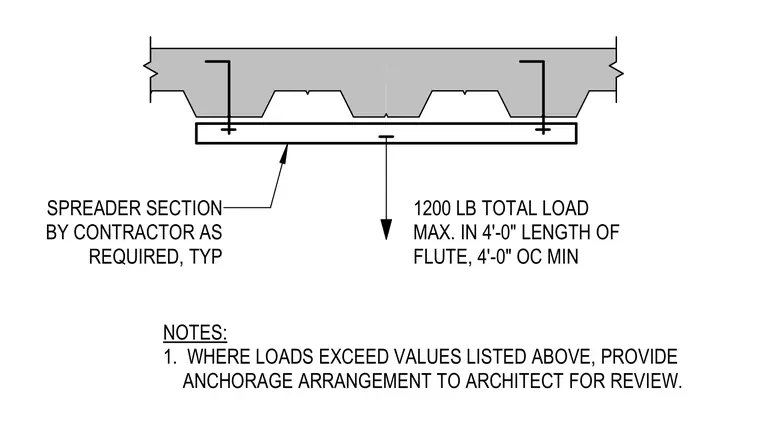

SPREADER SECTION BY CONTRACTOR AS REQUIRED, TYP 1200 LB TOTAL LOAD MAX. IN 4'-0" LENGTH OF FLUTE, 4'-0" OC MIN NOTES: 1. WHERE LOADS EXCEED VALUES LISTED ABOVE, PROVIDE ANCHORAGE ARRANGEMENT TO ARCHITECT FOR REVIEW.
