Structural · S-2DT6R

Beam to Parallel Beam Web Plate Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Beam-to-Beam Bolted Connection

About this detail

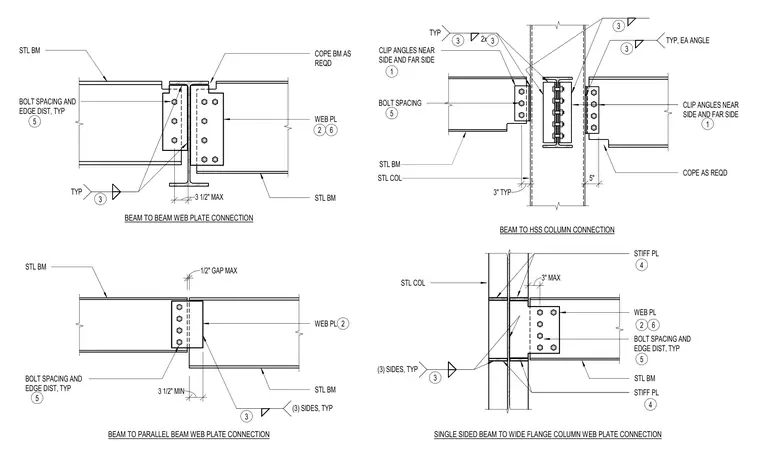

These structural details illustrate common steel framing connections including beam-to-beam web plate connections, beam-to-HSS column connections, parallel beam web plate connections, and single-sided beam-to-wide-flange column web plate connections. Steel beams connect to supporting members using bolted web plates or clip angles on the near side and far side, with specified bolt spacing, edge distances, and a maximum gap. Stiffener plates welded to the column flanges provide additional support where indicated. Beams are coped as required to fit framing geometry, and welds are specified with typical fillet sizes and side counts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
