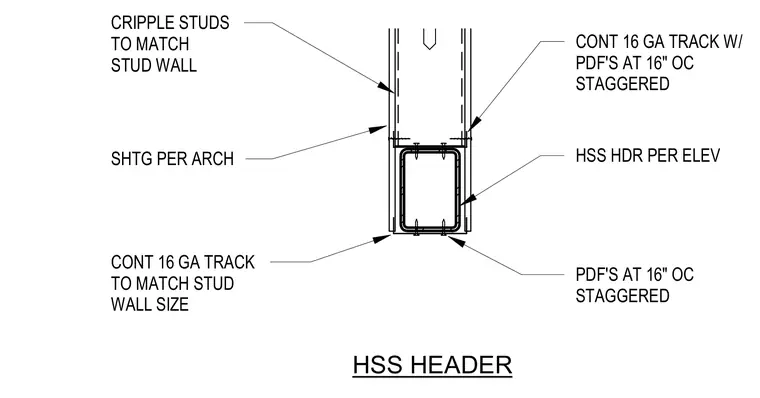

A hollow structural section header is positioned within a cold-formed steel wall assembly, supported by cripple studs matching the stud wall size. Continuous 16-gauge tracks tie into the header and stud framing using power-driven fasteners spaced at 16 inches on center staggered. Exterior sheathing is applied per architectural specifications. Powder-actuated fasteners secure the continuous track to the structural steel header.
CONT 16 GA TRACK TO MATCH STUD WALL SIZE CONT 16 GA TRACK W/ PDF'S AT 16" OC STAGGERED HSS HEADER HSS HDR PER ELEV PDF'S AT 16" OC STAGGERED SHTG PER ARCH CRIPPLE STUDS TO MATCH STUD WALL
