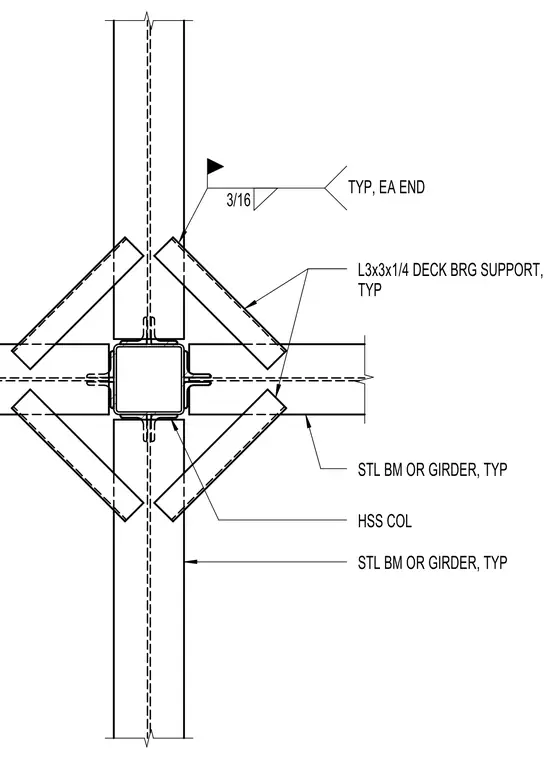

A hollow structural section column ties into intersecting steel beams or girders with three-sixteenths inch fillet welds at each end typical. L3x3x1/4 angles serve as typical deck bearing supports positioned diagonally around the column connection.
STL BM OR GIRDER, TYP HSS COL STL BM OR GIRDER, TYP TYP, EA END 3/16 L3x3x1/4 DECK BRG SUPPORT, TYP
