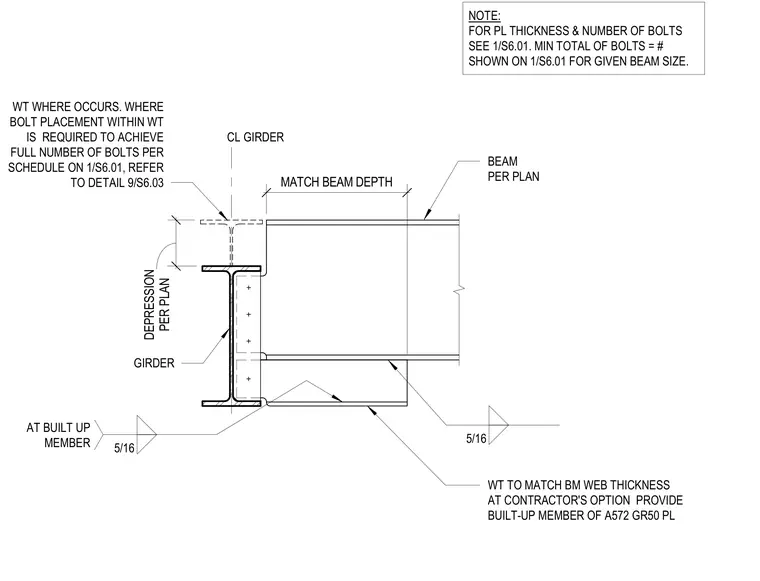

A structural steel beam frames into the web of a depressed girder with a depth depression sized per plan. A structural tee section matches the beam web thickness, or alternatively a built-up member fabricated from ASTM A572 Grade 50 plate is provided at the contractor's option. The plate thickness and number of bolts are governed by the schedule on sheet S6.01, with five-sixteenths inch fillet welds indicated at the built-up member and girder connections. Bolt placement within the structural tee or alternative member follows specific detailing guidelines when necessary to achieve the full required bolt count.
PER PLAN DEPRESSION CL GIRDER BEAM PER PLAN WT TO MATCH BM WEB THICKNESS AT CONTRACTOR'S OPTION PROVIDE BUILT-UP MEMBER OF A572 GR50 PL NOTE: FOR PL THICKNESS & NUMBER OF BOLTS SEE 1/S6.01. MIN TOTAL OF BOLTS = # SHOWN ON 1/S6.01 FOR GIVEN BEAM SIZE. MATCH BEAM DEPTH 5/16 5/16 AT BUILT UP MEMBER GIRDER WT WHERE OCCURS. WHERE BOLT PLACEMENT WITHIN WT IS REQUIRED TO ACHIEVE FULL NUMBER OF BOLTS PER SCHEDULE ON 1/S6.01, REFER TO DETAIL 9/S6.03
