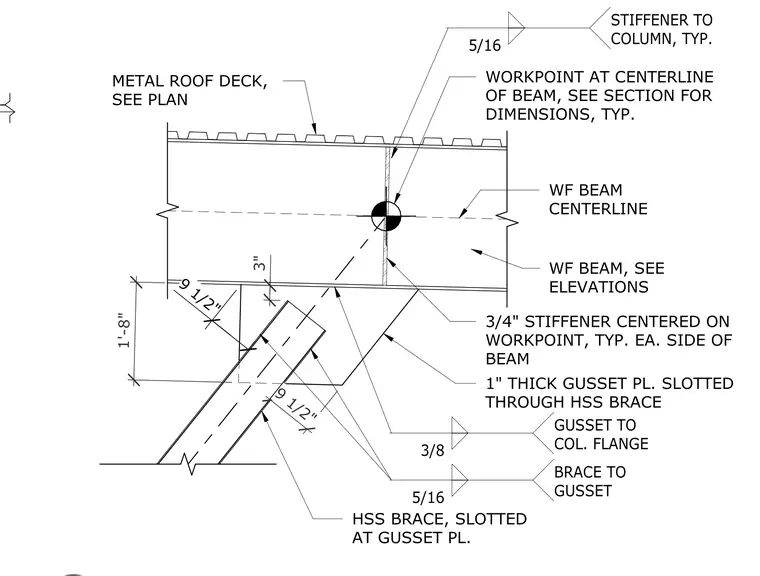

This assembly consists of a hollow structural section brace slotted onto a one-inch thick gusset plate, which is welded to the underside of a wide flange beam and the adjacent column flange with three-eighths inch fillet welds. The brace is secured to the gusset plate with five-sixteenths inch fillet welds. A three-quarter inch stiffener plate is centered on the workpoint at the beam-column junction on each side of the beam, attached with five-sixteenths inch fillet welds to the column. The beam centerline is established at the workpoint, with metal roof deck positioned above the beam.
Text on the drawing
WORKPOINT AT CENTERLINE OF BEAM, SEE SECTION FOR DIMENSIONS, TYP. WF BEAM, SEE ELEVATIONS METAL ROOF DECK, SEE PLAN WF BEAM CENTERLINE 5/16 STIFFENER TO COLUMN, TYP. 3/4" STIFFENER CENTERED ON WORKPOINT, TYP. EA. SIDE OF BEAM 3" 1'-8" 9 1/2"
