Structural · S-2DHFV

Lateral Bracing Connection at Perpendicular Wide Flange Beam

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Roofs Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection Shear Stud / Composite

About this detail

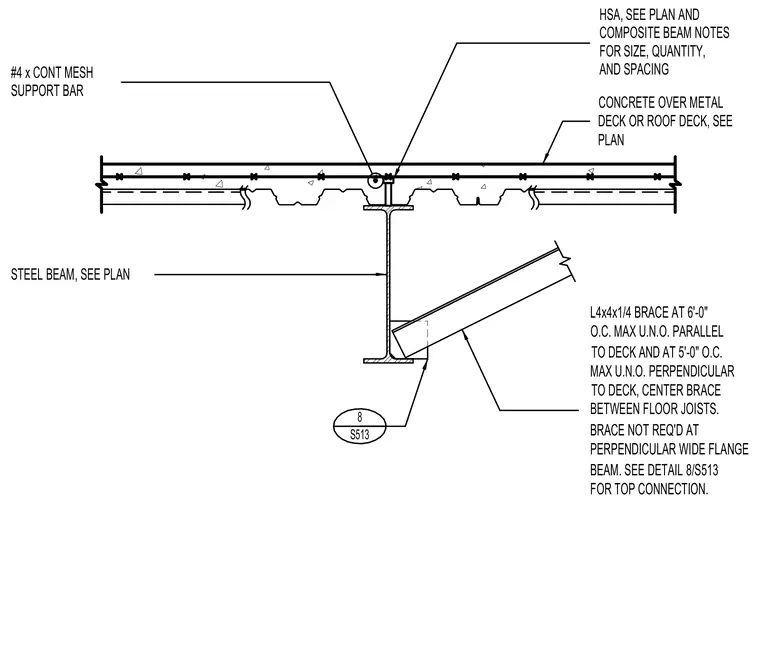

An L4x4x1/4 structural steel angle brace connects to the bottom flange of a wide flange steel beam sized per plan. The brace is spaced at a maximum of six feet on center parallel to the deck and five feet on center perpendicular to the deck, centered between floor joists, and is omitted at perpendicular wide flange beams with the top connection detailed on sheet S513. A continuous number four mesh support bar runs alongside headed stud anchors sized and spaced per plan and composite beam notes. A concrete slab is poured over a metal deck or roof deck sized per plan.
