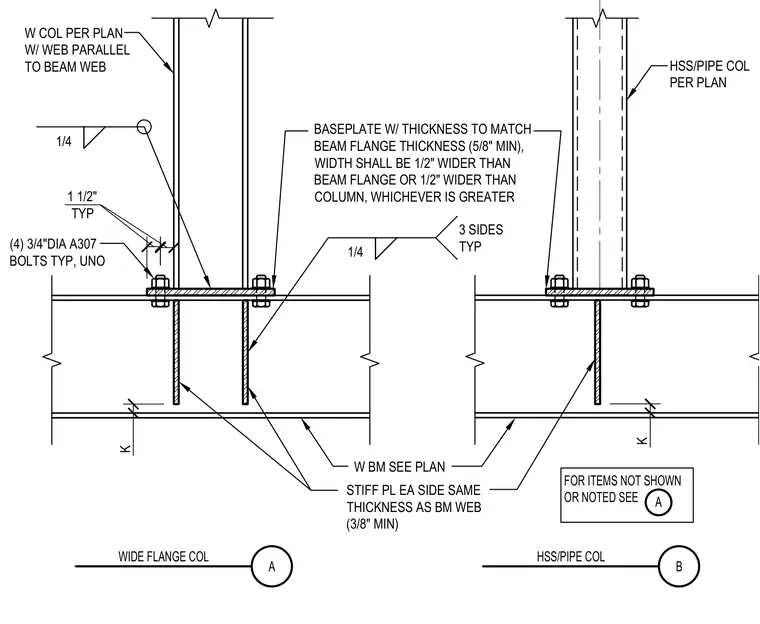

A hollow structural section or pipe column or wide flange column bears directly onto a steel base plate resting atop a wide flange supporting beam. The base plate has a thickness matching the beam flange with a five-eighths inch minimum, sized one-half inch wider than the beam flange or column whichever is greater. Four three-quarter inch diameter A307 bolts secure the column base plate to the supporting beam flange. Stiffener plates matching the beam web thickness with a three-eighths inch minimum are welded to each side of the beam web beneath the column load. Fillet welds of one-quarter inch size secure the components as indicated by typical weld symbols.
HSS/PIPE COL PER PLAN W BM SEE PLAN STIFF PL EA SIDE SAME THICKNESS AS BM WEB (3/8" MIN) K K 1 1/2" TYP 1/4 1/4 3 SIDES TYP FOR ITEMS NOT SHOWN OR NOTED SEE A BASEPLATE W/ THICKNESS TO MATCH BEAM FLANGE THICKNESS (5/8" MIN), WIDTH SHALL BE 1/2" WIDER THAN BEAM FLANGE OR 1/2" WIDER THAN COLUMN, WHICHEVER IS GREATER (4) 3/4"DIA A307 BOLTS TYP, UNO W COL PER PLAN W/ WEB PARALLEL TO BEAM WEB A WIDE FLANGE COL B HSS/PIPE COL
