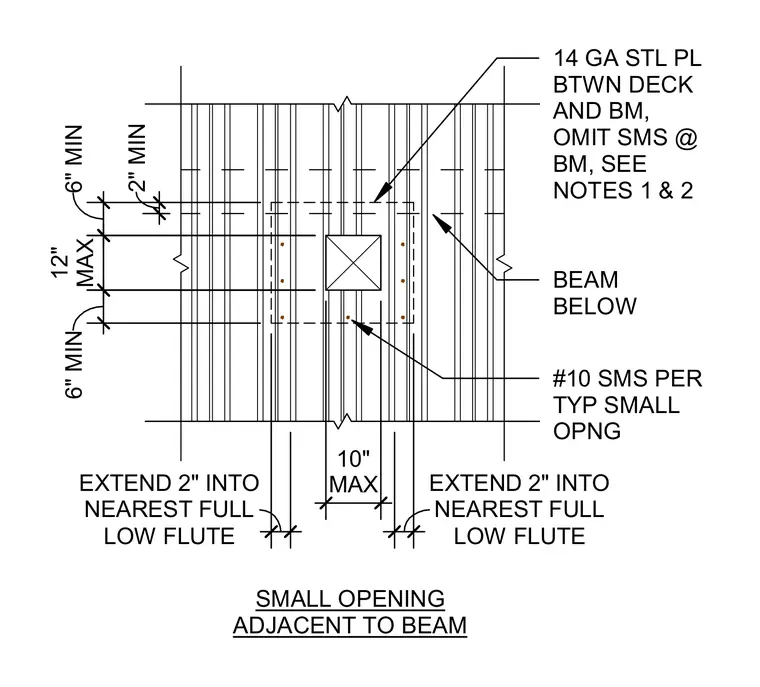

A fourteen-gauge steel plate is positioned between the metal deck and the steel beam below to reinforce a small opening. The plate extends a minimum of two inches into the nearest full low flute on each side of the penetration, maintaining specified dimensional clearances. Number ten sheet metal screws secure the plate, but are omitted at the beam per engineering notes. The opening dimensions are limited to ten inches maximum width, with surrounding boundary dimensions ensuring adequate bearing and edge distance.
SMALL OPENING ADJACENT TO BEAM LOW FLUTE EXTEND 2" INTO NEAREST FULL LOW FLUTE EXTEND 2" INTO NEAREST FULL 10" MAX 6" MIN 12" MAX 6" MIN #10 SMS PER TYP SMALL OPNG 14 GA STL PL BTWN DECK AND BM, OMIT SMS @ BM, SEE NOTES 1 & 2 BEAM BELOW 2" MIN
