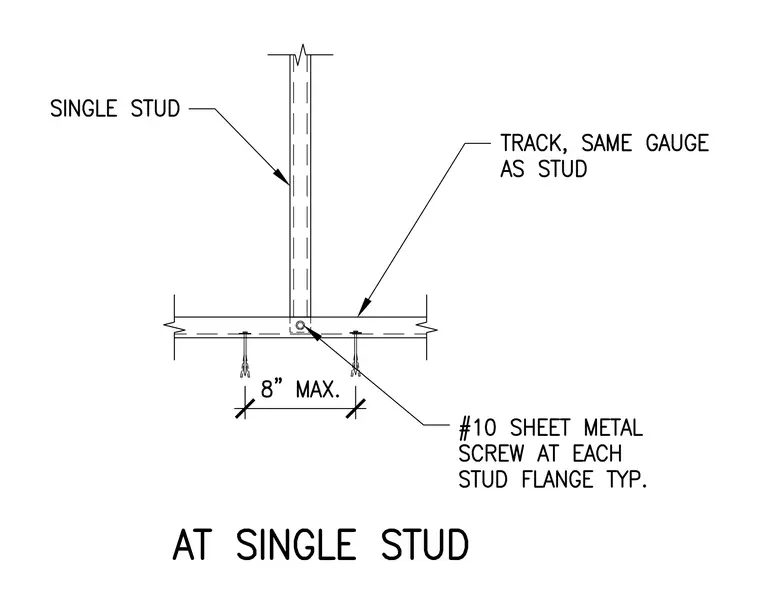

A single cold-formed metal stud frames perpendicularly into a track of the same gauge. The connection is secured with a number 10 sheet metal screw at each stud flange typically. Additional mechanical fasteners anchor the assembly at a maximum spacing of eight inches.
