Structural · S-2CAKX

Buckling-Restrained Brace Collar Assembly and Gusset Connection

Materials

Steel

Elements

Columns Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

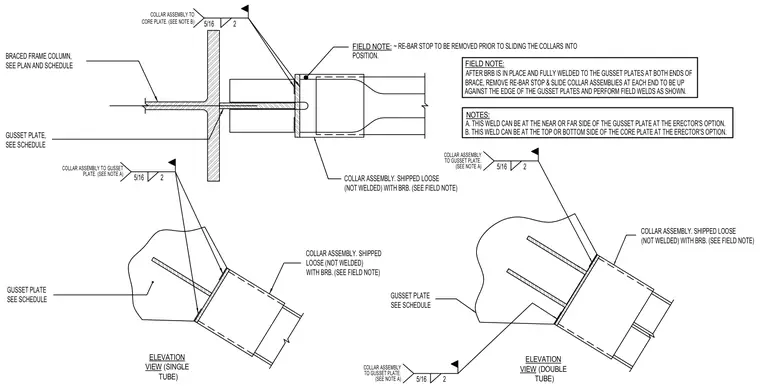

A loose-shipped collar assembly installs onto a buckling-restrained brace at a gusset plate and braced frame column connection. After the brace is fully welded to the gusset plates, the re-bar stop is removed to slide the collar assembly into position against the gusset plate edge. Field welds of five-sixteenths inch fillets are specified for securing the collar assembly to the gusset plates and core plate, with options for near-side, far-side, top, or bottom placement at the erector's discretion. The braced frame column and gusset plates are sized per plan and schedule.
