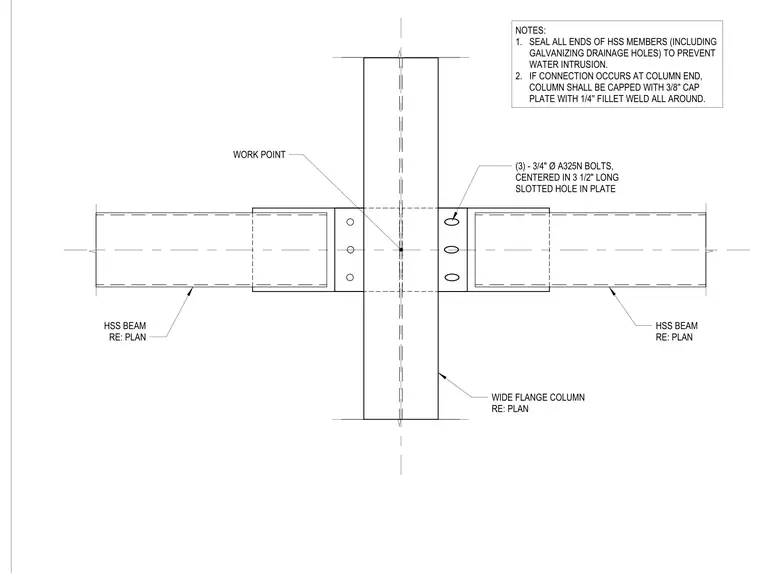

This assembly connects hollow structural section beams to a wide flange column using a bolted plate connection. The connection utilizes three 3/4-inch diameter A325N bolts centered within a 3 1/2-inch long slotted hole in the connection plate to allow for thermal expansion or structural movement. All ends of the hollow structural section members must be sealed, including galvanizing drainage holes, to prevent water intrusion. If the connection occurs at the end of a column, the column must be capped with a 3/8-inch thick cap plate secured with a 1/4-inch fillet weld all around.
Text on the drawing
NOTES: 1. SEAL ALL ENDS OF HSS MEMBERS (INCLUDING GALVANIZING DRAINAGE HOLES) TO PREVENT WATER INTRUSION. 2. IF CONNECTION OCCURS AT COLUMN END, COLUMN SHALL BE CAPPED WITH 3/8'' CAP PLATE WITH 1/4'' FILLET WELD ALL AROUND. WORK POINT WIDE FLANGE COLUMN RE: PLAN HSS BEAM RE: PLAN HSS BEAM RE: PLAN (3) - 3/4" Ø A325N BOLTS, CENTERED IN 3 1/2" LONG SLOTTED HOLE IN PLATE
