An HSS header or stair channel stringer connects to a concrete wall or pier using a one-half-inch by six-inch by ten-inch plate welded to an MC8x20 channel section. The assembly is secured to the concrete wall with two three-quarter-inch diameter by three-and-a-half-inch embedment Hilti HIT-HY 200 V3 adhesive anchors. Three-eighths-inch side plates are welded with three-sixteenths-inch fillet welds typically. A two-inch gap is maintained between the steel framing and the concrete surface. Mitered channels and corner conditions require top and bottom legs to be ground smooth with stringers matched full height.

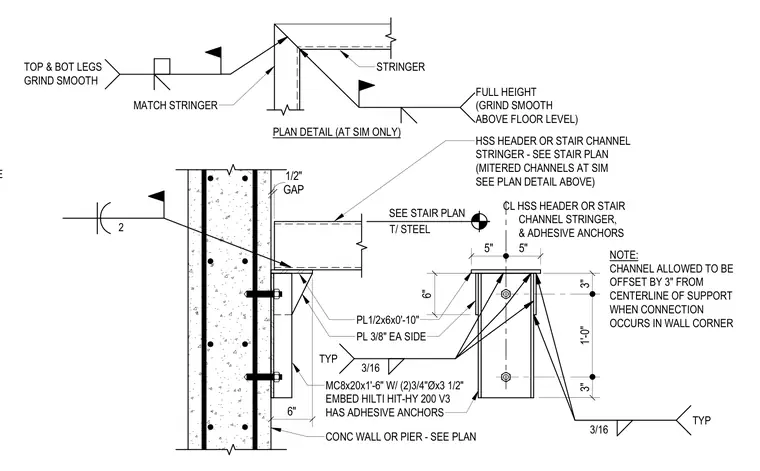

T/ STEEL SEE STAIR PLAN HSS HEADER OR STAIR CHANNEL STRINGER - SEE STAIR PLAN (MITERED CHANNELS AT SIM SEE PLAN DETAIL ABOVE) 2 GAP 1/2" CONC WALL OR PIER - SEE PLAN 3" 1'-0" 3" 3/16 TYP 5" 5" CL HSS HEADER OR STAIR CHANNEL STRINGER, & ADHESIVE ANCHORS PL1/2x6x0'-10" PL 3/8" EA SIDE 3/16 TYP MC8x20x1'-6" W/ (2)3/4"Øx3 1/2" EMBED HILTI HIT-HY 200 V3 HAS ADHESIVE ANCHORS 6" 6" NOTE: CHANNEL ALLOWED TO BE OFFSET BY 3" FROM CENTERLINE OF SUPPORT WHEN CONNECTION OCCURS IN WALL CORNER STRINGER MATCH STRINGER FULL HEIGHT (GRIND SMOOTH ABOVE FLOOR LEVEL) TOP & BOT LEGS GRIND SMOOTH PLAN DETAIL (AT SIM ONLY) SLAB ON GRADE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
