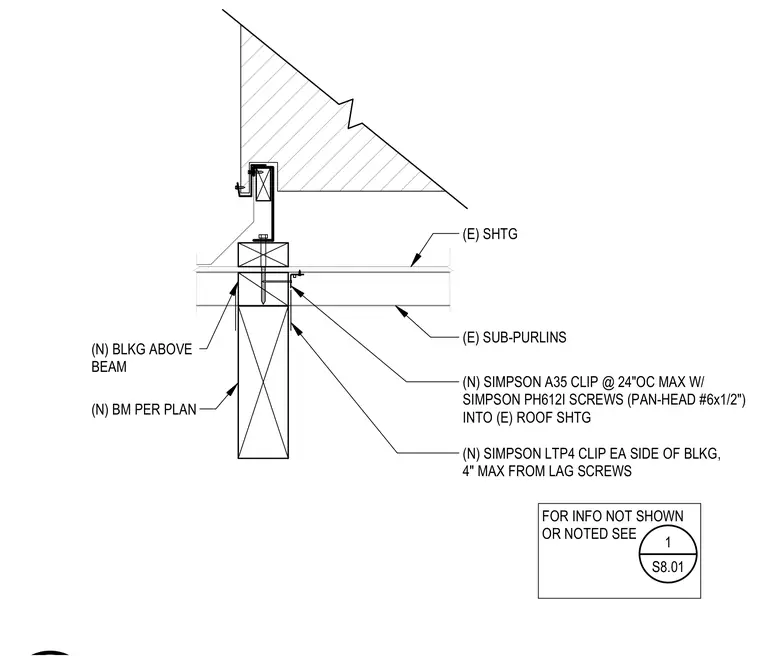

New blocking is installed above the beam per plan and connected with Simpson LTP4 clips on each side. A Simpson A35 clip is spaced at twenty-four inches on center maximum and secured into existing roof sheathing using Simpson PH612I pan-head screws. Existing sub-purlins and sheathing bear over the assembly.
(E) SHTG (N) SIMPSON A35 CLIP @ 24"OC MAX W/ SIMPSON PH612I SCREWS (PAN-HEAD #6x1/2") INTO (E) ROOF SHTG (N) BM PER PLAN (N) BLKG ABOVE BEAM (E) SUB-PURLINS (N) SIMPSON LTP4 CLIP EA SIDE OF BLKG, 4" MAX FROM LAG SCREWS FOR INFO NOT SHOWN OR NOTED SEE 1 S8.01
