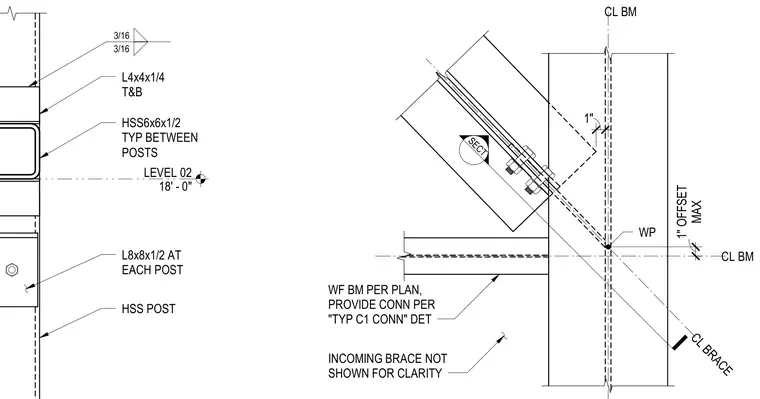

An incoming brace connects to a gusset plate aligned with a maximum one-inch offset from the beam centerline work point. A wide-flange beam connects per plan using a typical C1 connection detail. Framing members include hollow structural section posts with supporting angles top and bottom, and angle profiles at each post welded with three-sixteenths fillet welds. The layout accommodates a maximum one-inch offset at Level 02 elevation eighteen feet zero inches.
SECT 1" WP WF BM PER PLAN, PROVIDE CONN PER "TYP C1 CONN" DET MAX 1" OFFSET INCOMING BRACE NOT SHOWN FOR CLARITY CL BRACE CL BM CL BM LEVEL 02 18' - 0" 3/16 3/16 L4x4x1/4 T&B HSS6x6x1/2 TYP BETWEEN POSTS HSS POST L8x8x1/2 AT EACH POST
