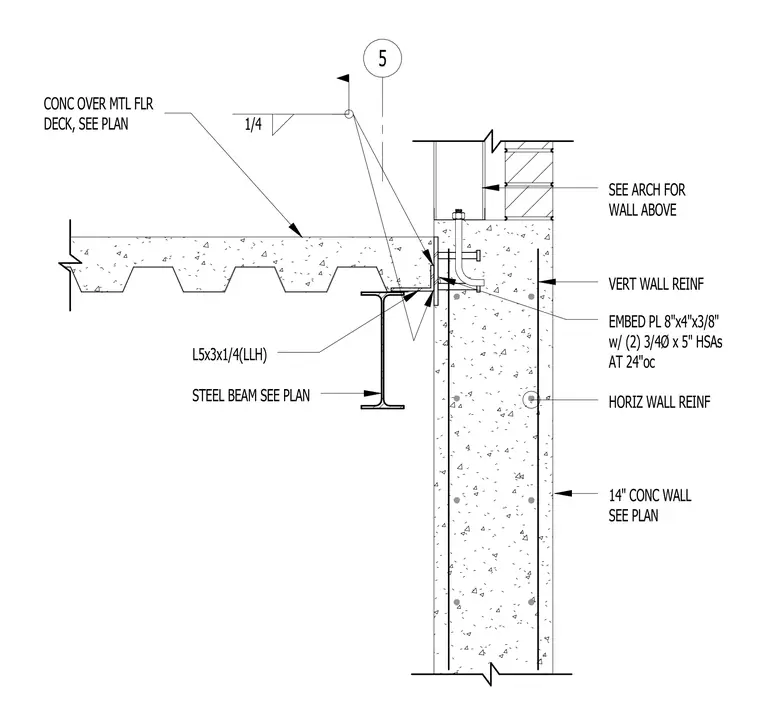

An L5x3x1/4 angle with long legs horizontal acts as a seat for the concrete over metal floor deck and is supported by a steel beam sized per plan. An embed plate measuring eight inches by four inches by three-eighths of an inch is anchored into the fourteen-inch concrete wall with two three-quarter-inch diameter by five-inch headed stud anchors spaced at twenty-four inches on center. The concrete wall contains vertical and horizontal reinforcing steel bars, with wall framing above coordinated per architectural drawings.
L5x3x1/4(LLH) STEEL BEAM SEE PLAN EMBED PL 8"x4"x3/8" w/ (2) 3/4Ø x 5" HSAs AT 24"oc CONC OVER MTL FLR DECK, SEE PLAN 14" CONC WALL SEE PLAN SEE ARCH FOR WALL ABOVE 5 1/4 HORIZ WALL REINF VERT WALL REINF
