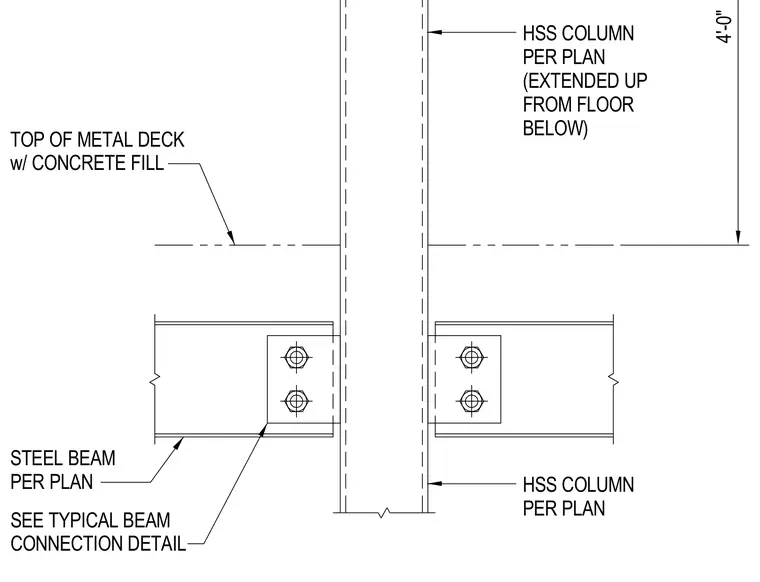

An upper hollow structural section column extends up from the floor below, connecting to a lower hollow structural section column sized per plan. Steel beams frame into the column flanges via shear tab connections sized per plan. A metal deck with concrete fill terminates at a height of 4'-0" above the floor finish.
4'-0" TOP OF METAL DECK w/ CONCRETE FILL STEEL BEAM PER PLAN SEE TYPICAL BEAM CONNECTION DETAIL HSS COLUMN PER PLAN HSS COLUMN PER PLAN (EXTENDED UP FROM FLOOR BELOW)
