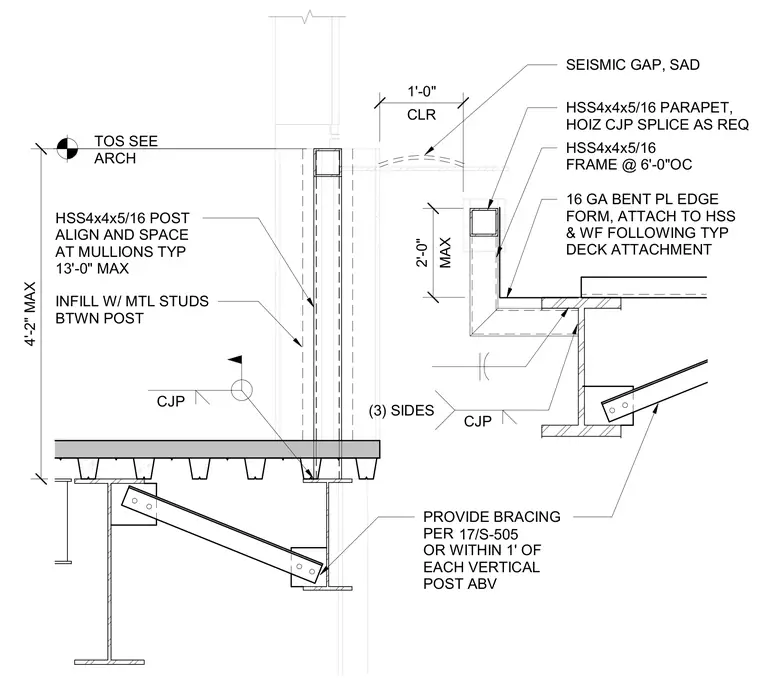

A structural steel atrium parapet and seismic gap assembly intersects a floor deck. Vertical hollow structural section posts measuring HSS 4x4x5/16 are aligned and spaced at mullions with a maximum spacing of thirteen feet, featuring metal stud infill between posts. A horizontal HSS 4x4x5/16 parapet frame is spaced at six feet on center with complete joint penetration splices as required and connected on three sides. A sixteen-gauge bent plate edge form is attached to the hollow structural section and wide flange member following typical deck attachment details. Bracing is provided per sheet 17/S-505 or within one foot of each vertical post above, maintaining a one-foot clear seismic gap.
HSS4x4x5/16 POST ALIGN AND SPACE AT MULLIONS TYP 13'-0" MAX INFILL W/ MTL STUDS BTWN POST HSS4x4x5/16 PARAPET, HOIZ CJP SPLICE AS REQ HSS4x4x5/16 FRAME @ 6'-0"OC CJP (3) SIDES CJP SEISMIC GAP, SAD CLR 1'-0" TOS SEE ARCH 4'-2" MAX PROVIDE BRACING PER OR WITHIN 1' OF EACH VERTICAL POST ABV 17/S-505 MAX 2'-0" 16 GA BENT PL EDGE FORM, ATTACH TO HSS & WF FOLLOWING TYP DECK ATTACHMENT
