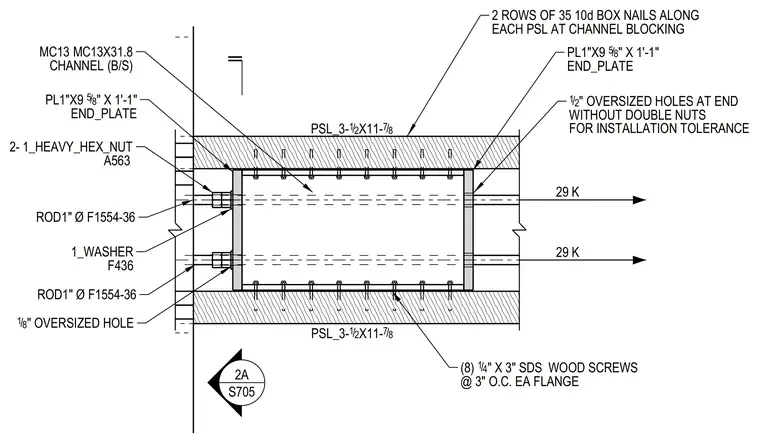

A tension rod splice connection utilizes two parallel strand lumber members tied across a channel blocking assembly. A one-inch diameter ASTM F1554 Grade 36 tension rod transfers a twenty-nine kip load through a one-inch by nine and five-eighths inch by one-foot one-inch steel end plate. The assembly features MC13x31.8 steel channels on both sides, secured with heavy hex nuts and washers. One-half inch oversized holes at the ends accommodate installation tolerances without double nuts, alongside one-eighth inch oversized holes. Eight quarter-inch by three-inch self-drilling wood screws at three inches on center are fastened to each flange, while two rows of thirty-five ten-penny box nails run along each parallel strand lumber at the channel blocking.
2A S705 29 K ROD1" Ø F1554-36 18 / " OVERSIZED HOLE (8) 14 / " X 3" SDS WOOD SCREWS @ 3" O.C. EA FLANGE PSL_3- 12 / X11- 78 / PSL_3- 12 / X11- 78 / PL1"X9 58 / " X 1'-1" END_PLATE PL1"X9 58 / " X 1'-1" END_PLATE MC13 MC13X31.8 CHANNEL (B/S) 2- 1_HEAVY_HEX_NUT A563 1_WASHER F436 ROD1" Ø F1554-36 FOR INSTALLATION TOLERANCE WITHOUT DOUBLE NUTS 12 / " OVERSIZED HOLES AT END 29 K EACH PSL AT CHANNEL BLOCKING 2 ROWS OF 35 10d BOX NAILS ALONG
