Terrace Door Threshold Section at Composite Slab Edge

Materials

Timber / Wood

Elements

Beams Doors Floors / Slabs Arches

Connections

Shear Stud / Composite

About this detail

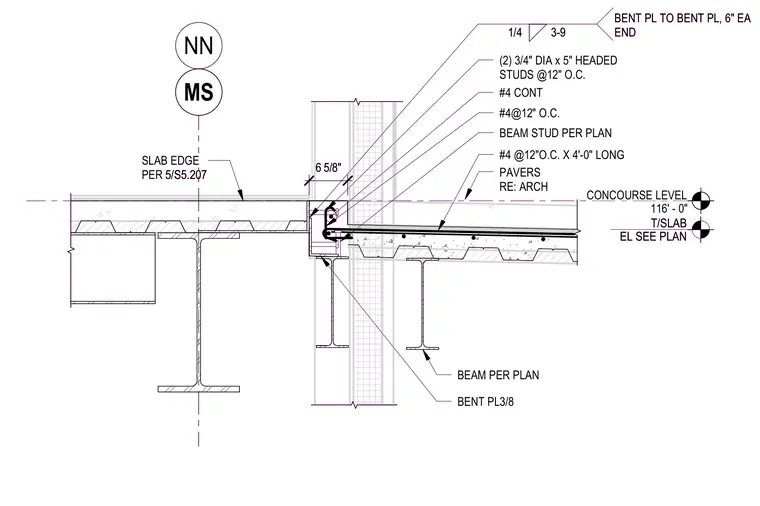

A terrace door threshold section occurs at a composite concrete slab edge supported by structural steel framing. The assembly features a slab edge condition located at the concourse level with a six and five-eighths inch dimension, utilizing a three-eighths-inch bent plate connection welded with a quarter-inch fillet weld six inches each end. Concrete reinforcement includes continuous number four rebar, number four rebar at twelve inches on center, and four-foot-long number four rebar bars at twelve inches on center. Two three-quarter-inch diameter by five-inch headed studs at twelve inches on center tie the composite slab to the supporting structural steel beams per plan, while pavers finish the exterior terrace surface.
