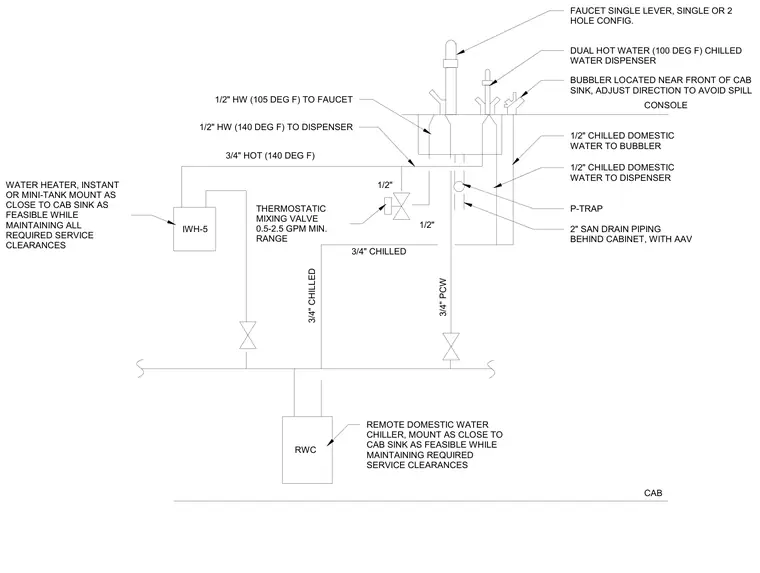

Cabinet Sink Plumbing and Water Dispenser Piping Diagram

Elements

About this detail

The plumbing assembly connects a cabinet sink console to a remote domestic water chiller and instant water heater with dedicated supply lines and valved connections. A single-lever faucet is supplied by a one-half-inch hot water line at one hundred five degrees Fahrenheit, while a dual water dispenser receives one-half-inch hot water at one hundred forty degrees Fahrenheit and one-half-inch chilled domestic water. A bubbler located near the front of the console is fed by a one-half-inch chilled domestic water line and adjusted to avoid spills. The system includes a three-quarter-inch hot water line regulated by a thermostatic mixing valve with a zero-point-five to two-point-five gallons per minute minimum range, connected to an instant or mini-tank water heater model IWH-5 mounted as close to the cabinet sink as feasible while maintaining required service clearances. A remote domestic water chiller supplies three-quarter-inch chilled water through valved branches. Drainage is handled by a two-inch sanitary drain piping run behind the cabinet with an air admittance valve and a standard p-trap.
