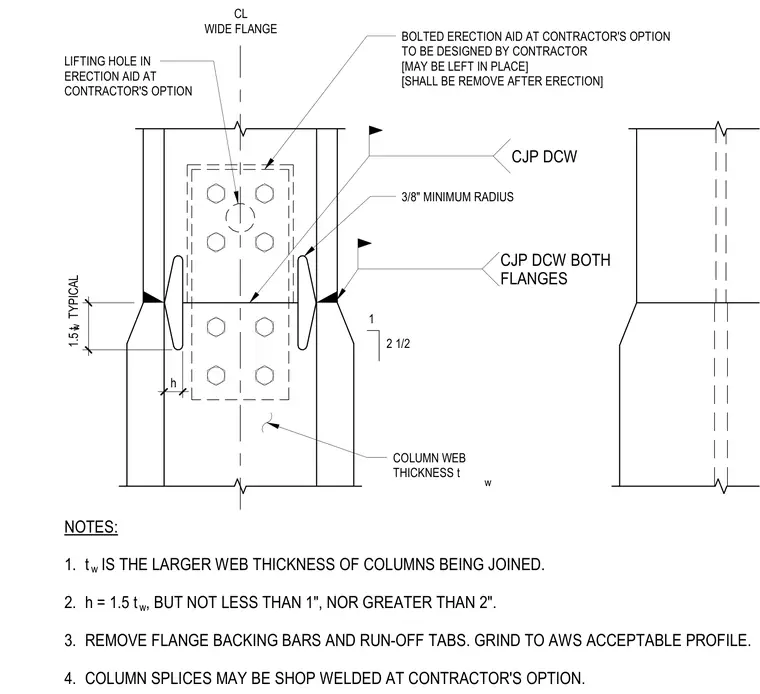

This structural steel column splice detail joins two wide-flange vertical members using complete joint penetration welds on both flanges and web. The upper and lower column sections connect end-to-end with a transition dimensioned relative to the web thickness. An optional bolted erection aid with a lifting hole may be installed at the contractor's discretion to assist with alignment during placement. Flange backing bars and run-off tabs must be removed after welding, with the finish ground to an American Welding Society acceptable profile. The web connection incorporates a specified minimum radius transition, and column splices are permitted to be shop welded.
3/8" MINIMUM RADIUS COLUMN WEB THICKNESS t w h 1.5 t TYPICAL w 1 2 1/2 NOTES: 1. t IS THE LARGER WEB THICKNESS OF COLUMNS BEING JOINED. 2. h = 1.5 t , BUT NOT LESS THAN 1", NOR GREATER THAN 2". 3. REMOVE FLANGE BACKING BARS AND RUN-OFF TABS. GRIND TO AWS ACCEPTABLE PROFILE. 4. COLUMN SPLICES MAY BE SHOP WELDED AT CONTRACTOR'S OPTION. w w BOLTED ERECTION AID AT CONTRACTOR'S OPTION TO BE DESIGNED BY CONTRACTOR [MAY BE LEFT IN PLACE] [SHALL BE REMOVE AFTER ERECTION] LIFTING HOLE IN ERECTION AID AT CONTRACTOR'S OPTION CL WIDE FLANGE CJP DCW CJP DCW BOTH FLANGES
