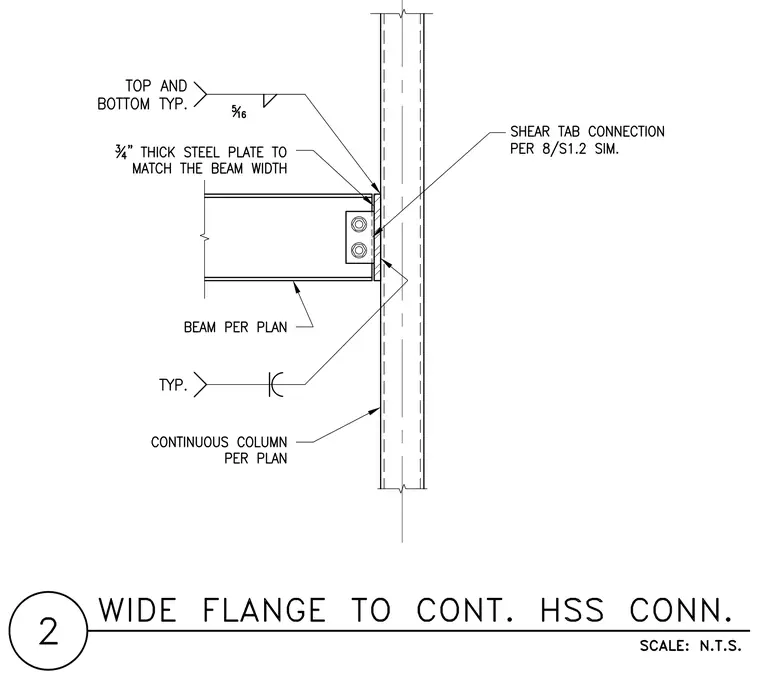

A wide flange beam per plan frames into a continuous hollow structural section column per plan utilizing a shear tab connection per 8/S1.2 similar. A three-quarter-inch thick steel plate matching the beam width is welded to the column using a five-sixteenth-inch fillet weld top and bottom typical. The beam web connects to the shear tab with two vertical bolts typical.
