Welded Corebrace Gusset Connection

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection

About this detail

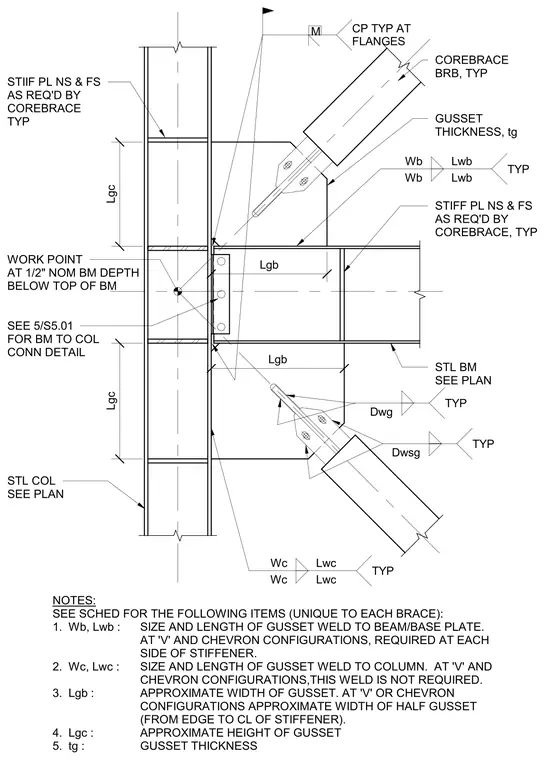

A welded gusset plate connection links a Corebrace buckling-restrained brace to a steel column and steel beam. The gusset plate features specified thickness and edge dimensions, welded to the supporting members with weld sizes and lengths detailed per schedule. Stiffener plates are installed near side and far side on the beam and column flanges as required by the brace design. The beam-to-column connection relies on a separate detail reference, and the work point is located below the top of the beam.
