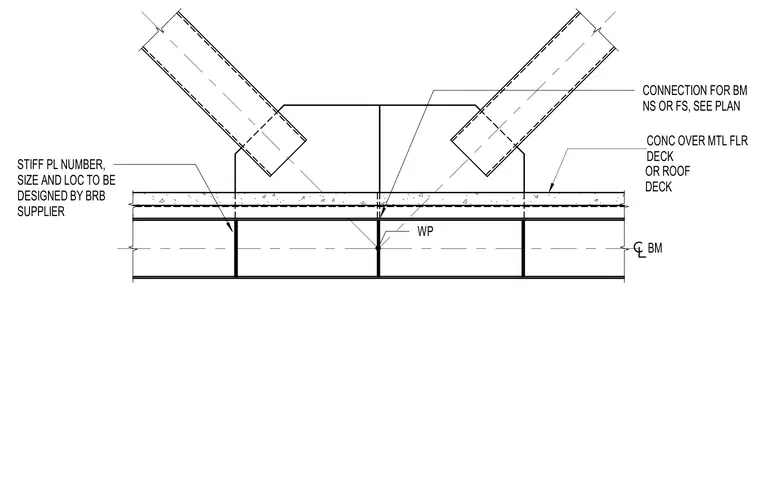

A structural beam supports a concrete slab over a metal floor deck with a V-braced frame connection. Stiffener plates are placed within the beam web, with their number, size, and location designated by the buckling-restrained brace supplier. A work point is established at the intersection of the framing centerlines. Connections for near side or far side beams are sized per the structural plans.
STIFF PL NUMBER, SIZE AND LOC TO BE DESIGNED BY BRB SUPPLIER BM CONC OVER MTL FLR DECK WP CONNECTION FOR BM NS OR FS, SEE PLAN OR ROOF DECK
