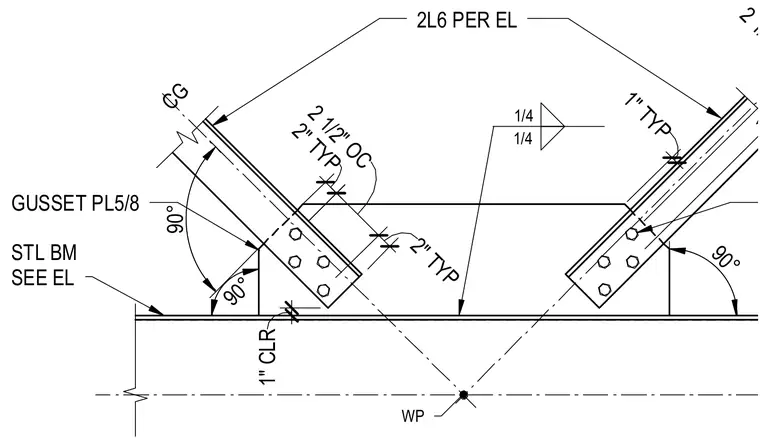

A five-eighths inch thick gusset plate connects double angle members sized per elevation to a steel beam, located per elevation. Double angle braces are bolted to the gusset plate with two-inch typical spacings and two and a half inches on center, maintaining a one-inch typical clearance. Fillet welds of one-quarter inch size join the assembly at ninety-degree orientation relative to the work point.
STL BM SEE EL GUSSET PL5/8 2L6 PER EL 1/4 1/4 WP 1" TYP 2" TYP 2 1/2" OC CG 90° 90° 90° 1" CLR 2" TYP 2 1/4"
